Transitions
Transitions Offered:
SA-82 Raised Aeration Transition
SA-83 Y-Transition
SA-84 Universal Transition
SA-85 18" Tapered Transition
SA-86 24" Tapered Transition
SA-87 28" Tapered Transition
SA-CFT-5 - 5 HP Centrifugal Transition
SA-CFT-7.5 - 7.5 HP Centrifugal Transition
SA-CFT-10 - 10 HP Centrifugal Transition
SA-CFT-15 - 15 HP Centrifugal Transition HD
SA-CFT-20 - 20 HP Centrifugal Transition HD
SA-CFT-25 - 25 HP Centrifugal Transition HD
FEATURES:
1. All Galvanized Steel
2. All Welded Construction
3. Completely Assembled
4.Transitions Have Access Doors

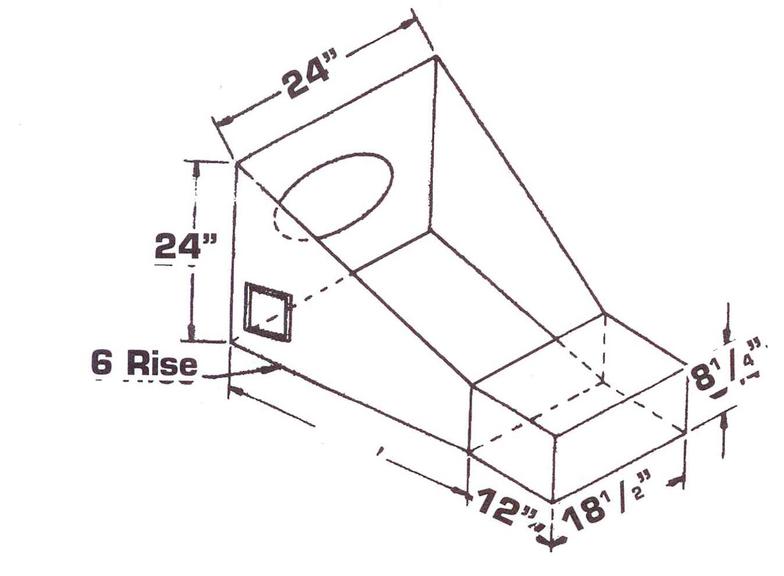

Raised Transition
Model SA-82
*For 12" to 18" Aeraton Fan
*24" x 24" Face Plate, 18 1/4" High Entrance
*Install in concrete or through bin wall 6" rise
*Access door
*Field cut for larger fans through 18" diameter

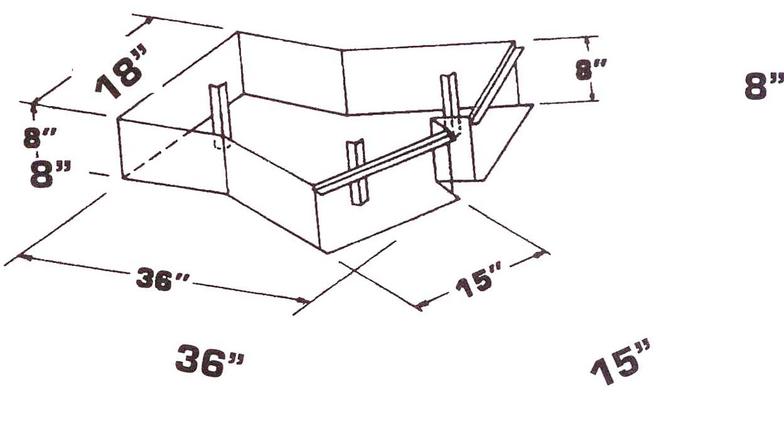

Y- Aeration Transition
Model SA-83
*Air goes through 2 different tunnels
with each opening 8" high, 15" wide entrance
* Fits into aeration transition
*Strong 16 gauge galvanized steel
*Built-in supports
*Lip for perforated panels

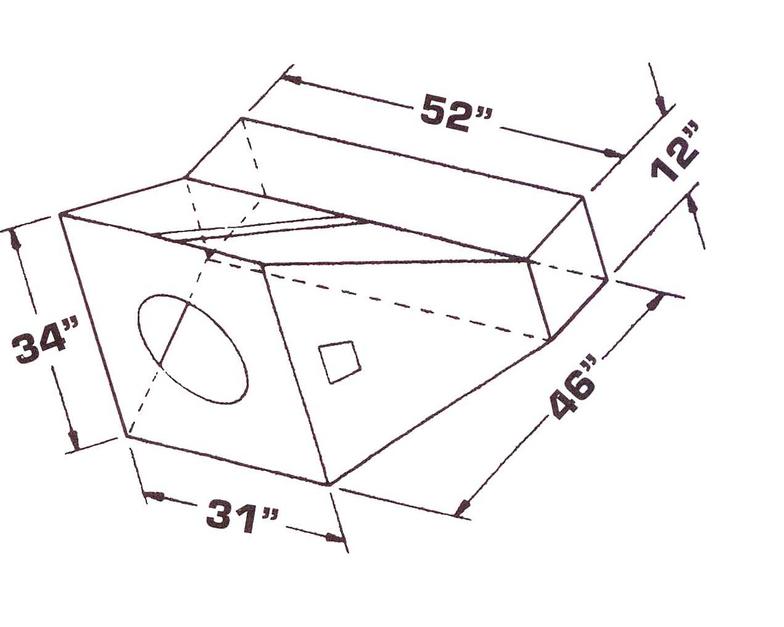

Universal Transition
SA-84
*For centrifugal or axial fans (to 28" diameter)
*One piece, assembled
*Heavy 16 gauge front
*Field cut to fit fan
*Side access doors for easy assembly to fan
*Flashing included
*31" x 34' face plate 52" wide 12" high entrance

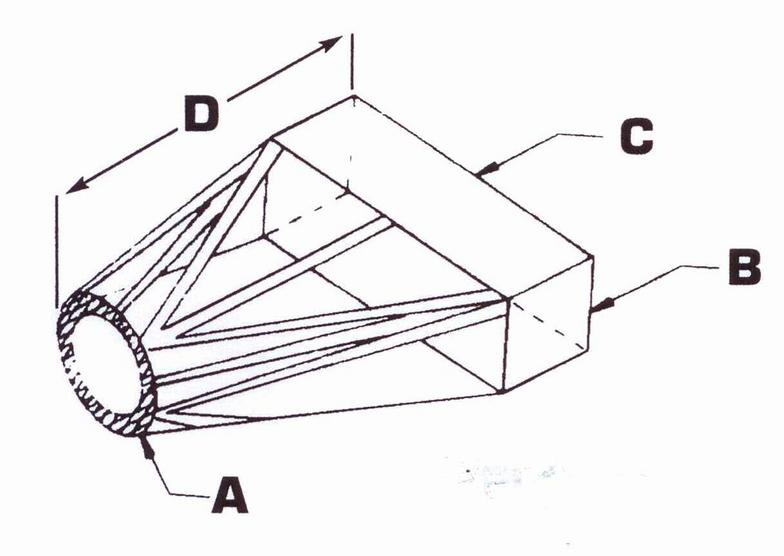

TAPERED TRANSITIONS
Spread-All Models B C D
SA-85 18" Tapered 10" 34" 35"
SA-86 24" Tapered 12" 52" 46"
SA-87 28" Tapered 12" 52" 46"

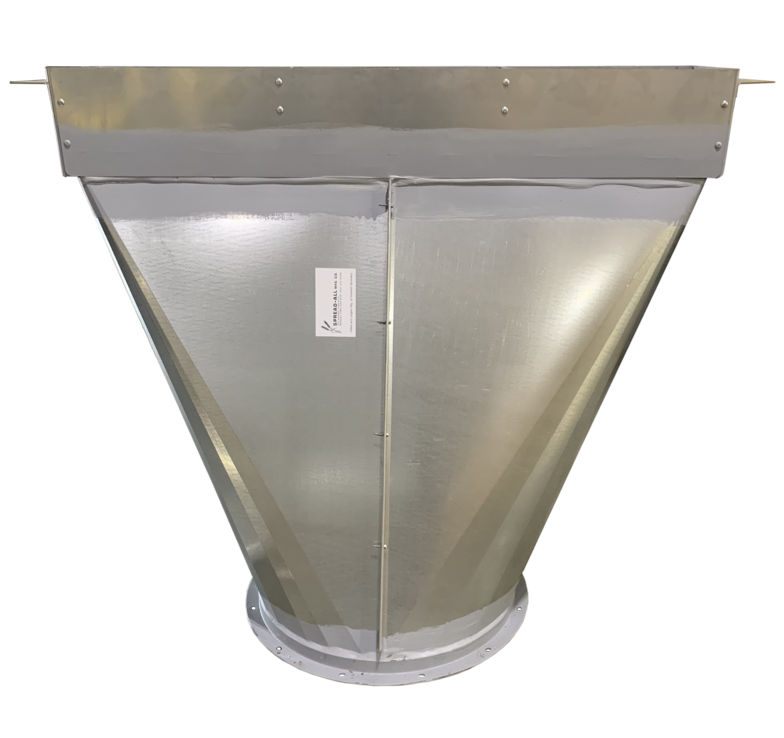

Tapered Transition

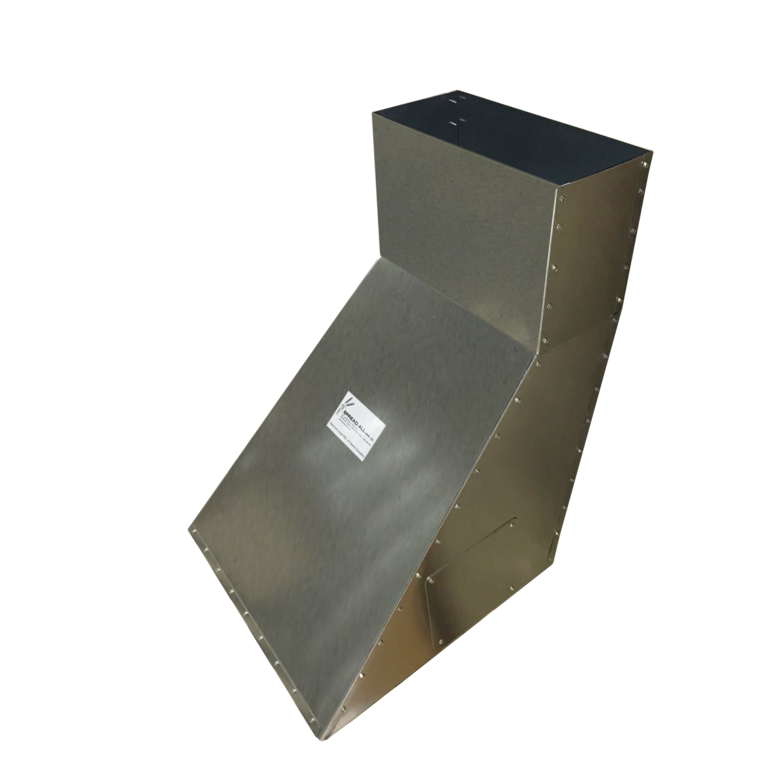

Raised Transition

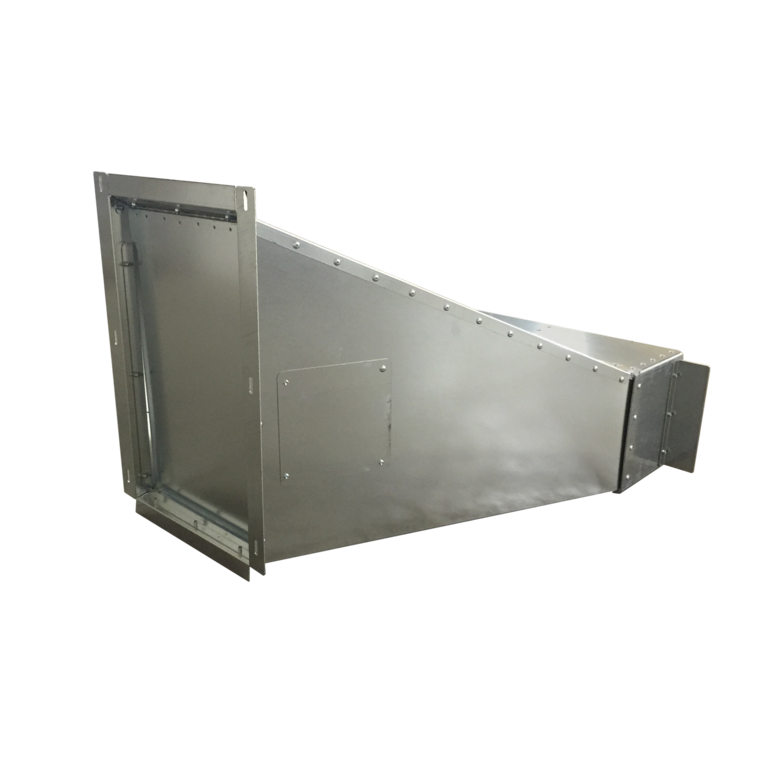

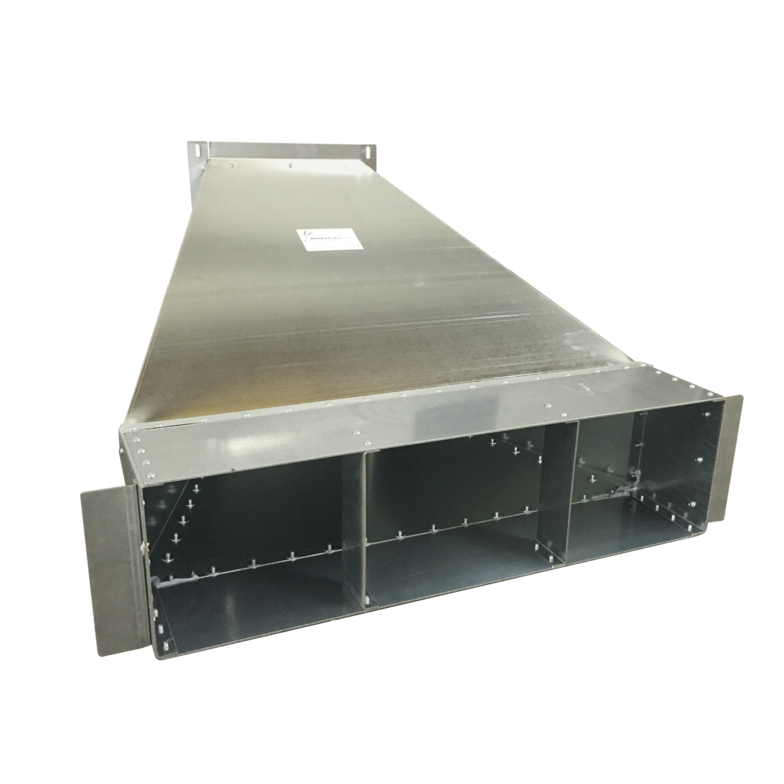

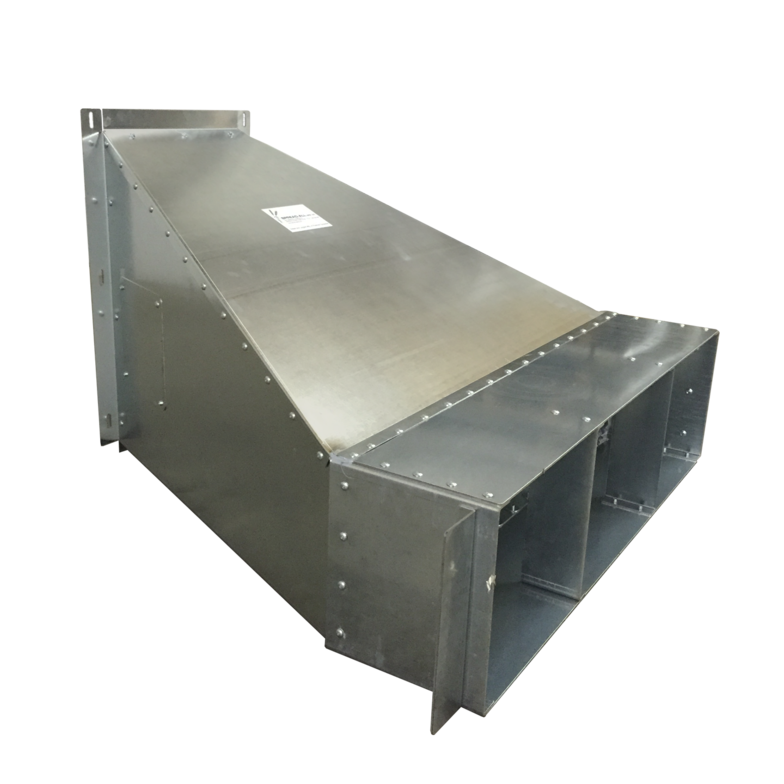

Centrifugal Transitions
SA-CFT-5 - SA-CFT-10 - Centrifugal Transition
*16 gauge front
SA-CFT-15 - SA-CFT-25 - Centrifugal Transition HD
*12 gauge front
12" x 44" boot
One piece, assembled
Side access for easy assembly to fan
Flashing Included

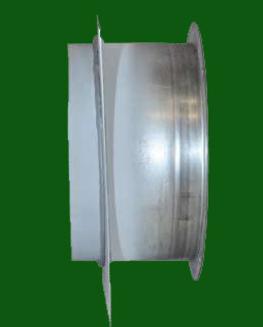

SA-120 - 12"/12" Wall Adaptor
SA-121 - 18"/12" Adaptor
*these can be made in various sizes
